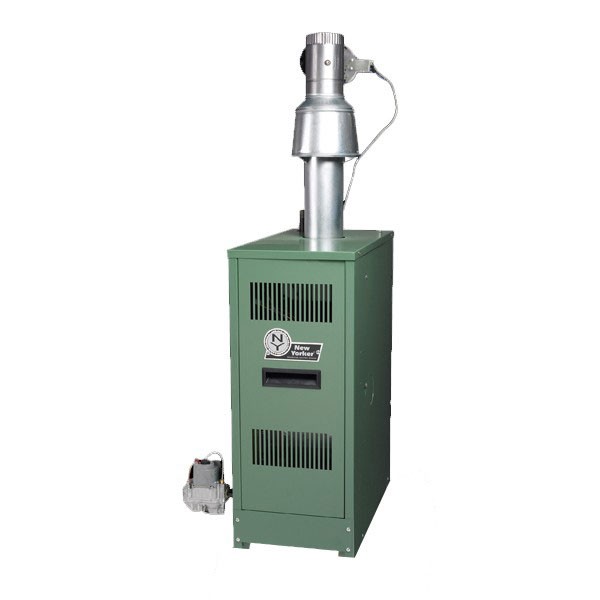

CG-D Series Atmospheric Gas Boilers

The CG-D Series cast iron heat exchanger' with metal section connectors' is immune to petroleum based chemicals such as anti-freeze which can deteriorate rubber seals used by some competitors. This means a longer boiler life and peace of mind for you.

  • Top Quality Components are standard' including Taco circulator and Honeywell controls.
  • Metal Section Connectors resist chemicals to increase the life of your boiler.
  • The Cast Iron Heat Exchanger provides long life and dependability.
  • Deluxe Insulated Jacket increases efficiency by reducing stand-by heat losses.
  • Intermittent Ignition System available as an option for extra savings.
MODELInput MBtuHOutput MBtuHAFUEDimensions
HxWxD
Water Content
Gal.
Weight
Lbs.
CG20D37.5 31.0 82.3 31.1x24.5x20.25 2.50 212
CG30D62.0 52.0 82.6 31.1x24.5x21.5 3.20 254
CG40D96.0 80.0 82.3 31.1x24.5x24.75 4.00 298
CG50D130.0 108.0 82.0 31.1x24.5x28 4.70 346
CG60D164.0 135.0 82.0 31.1x24.5x31.25 5.50 408
CG70D198.0 163.0 82.0 31.1x24.5x34.5 6.20 450
CG80D232.0 219.0 82.0 31.1x24.5x37.75 7.00 506
CG90G266.0 246.0 82.0 31.1x24.5x41 7.70 550
CG100G299.0 246.0 82.0 31.1x24.5x44.25 8.50 608
CG30DH62.0 52.0 84.0 31.1x24.5x21.5 3.20 254
CG40DH96.0 80.0 84.0 31.1x24.5x24.75 4.00 298
CG50DH130.0 108.0 84.0 31.1x24.5x28 4.70 346
CG60DH164.0 136.0 84.0 31.1x24.5x31.25 5.50 408

Warranty Information

  • All Parts for 12 months -
  • Heat Exchanger - Limited Lifetime with prompt online registration
